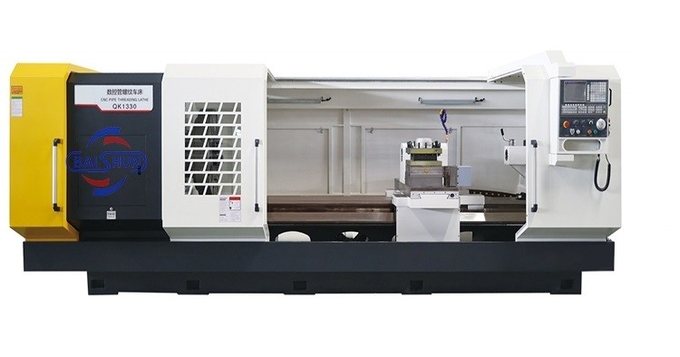

    Economic CNC Metal Cutting Machine Pipe Threading Lathe With Large Spindle Bore

    Ask Lasest Price
    Brand Name : BAISHUN
    Model Number : QK1332
    Certification : ISO
    Price : USD 45000-58000/Set
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 20/month
    Delivery Time : within 45days
    • Product Details
    • Company Profile

    Economic CNC Metal Cutting Machine Pipe Threading Lathe With Large Spindle Bore

    Economic CNC Metal Cutting Machine Pipe Threading Lathe With Large Spindle Bore


    Product Description:


    CNC pipe threading machine is a high efficiency, high precision two coordinate continuous control CNC machine independently researched and developed according to the development needs of petroleum industry. The machine has high power, good rigidity, can cut straight, oblique, arc, male, inch thread, and has a variety of functions such as tip radius compensation. The machine features high rigidity and high power. It is a high precision and high efficiency pipe thread machining machine.


    This machine can be used for rough machining and finishing machining of mechanical parts, especially suitable for petroleum, mining, machinery and other industries, for high-efficiency, high-volume and high-precision processing of rotary parts.
    The machine can process steel, cast iron, non-ferrous metals and other materials.
    This machine is also suitable for turning and processing of cylindrical surface, conical surface, thread, drilling, reaming, curve turning body and other parts of shaft and disk parts in small and medium batches. The machining accuracy is up to IT7 and the surface roughness of the machined work piece is up to Ra1.6.


    Features:

    1. Big spindle bore and double chuck to ensure process big diameter pipe.
    2. One-piece bed adopts high strength casting iron to ensure rigidity and precision.
    3. Ultrasonic frequency quenched guide-ways ensure good wear-resistance.
    4. Surface of carriage and guide way with high accuracy.

    Economic CNC Metal Cutting Machine Pipe Threading Lathe With Large Spindle Bore


    Technical specification:


    ModelUnitQK1325QK1327QK1332QK1335QK1353QK1363
    CNC System/

    Standard configuration:GSK980TDi

    Optional: FANUC; SIMENS;KND;etc.

    Max dia.swing over bedmm800800800100012501400
    Max dia.swing over cross slidemm480480480610860950
    Maxlength of work-piecemm150015001500150015001500
    Pipe threading rangemm70-25070-27580-320150-350350-525450-625
    Width of bedmm600/650755755755755755
    Spindle boremm255280325360540640
    Spindle center heightmm400400400500625700
    Power of spindle motormm111515223030
    Mode of spindle speed/Two gears , step less in gears
    Range of spindle speedr/min

    (L):15-100

    (H):100-350

    (L):20-100

    (H):100-300

    (L):20-130

    (H):100-300

    (L):30-130

    (H):65-260

    (L):20-80

    (H):55-220

    (L):15-65

    (H):65-120

    Max.traverse of X/Zmm

    X:420

    Z:1250

    X:420

    Z:1250

    X:420

    Z:1250

    X:450

    Z:1250

    X:650

    Z:1250

    X:750

    Z:1250

    X/Z rapid traversemm/min4000/50004000/50004000/50004000/50004000/50004000/5000
    Tailstock quillDiametermm100100100160160/260160/260
    Travelmm250250250300300300
    TaperMorse NO.6Morse NO.6Morse NO.6Morse NO.6Morse NO.6Morse NO.6
    TurretModelHAK21240HAK21300SLD170A04NSLD170A04NSLD170A04NSLD170A04N
    No.of tool stationsVertical four-station
    Dimension of toolmm32x3232x3232x3232x3232x3232x32
    Turret indexing times2.62.65.65.65.65.6
    ChuckK11-500 three jaw chuckK72-780 four jaw chuckK72-780 four jaw chuckK66-780 four jaw electric chuckK66-780 four jaw electric chuckK66-780 four jaw electric chuck
    Positioning accuracymm0.0200.0200.0200.0200.0400.040
    Repositioning accuracymm0.010.010.010.010.020.02
    Machine weightT6.5/7.2810101819

    Machine Details:


    Economic CNC Metal Cutting Machine Pipe Threading Lathe With Large Spindle Bore

    Economic CNC Metal Cutting Machine Pipe Threading Lathe With Large Spindle Bore

    Economic CNC Metal Cutting Machine Pipe Threading Lathe With Large Spindle Bore


    Packing and delivery:


    Economic CNC Metal Cutting Machine Pipe Threading Lathe With Large Spindle Bore


    For more details and specifications, please contact:


    Economic CNC Metal Cutting Machine Pipe Threading Lathe With Large Spindle Bore
