    Internal Portable Keyway Slotting Machine Vertical Shaper B5020

    Keyway Vertical Slotting Machine B5020 Vertical Shaper Metal Slotting Machine


    Product description:

    Metal slotting machine tools are used to process groove in workpiece. During processing, the workpiece on the worktable performs longitudinal, lateral or rotational movement, and the inserting tool reciprocates up and down to slot the workpiece. A linear motion machine tool that uses the vertical reciprocating motion of the slotting tool to slot the keyway and the hole. The slotting machine, like the planer, also uses a single-edged tool (slotting tool) to cut the workpiece, but the planer is a horizontal layout, and the slotting machine is a vertical layout. Slotting machines have high productivity and accuracy. They are mostly used to process internal keyways or spline holes in single or small batch production. They can also process flat, square or polygonal holes, etc.


    The main performance characteristics:
    1.The working table of the machine tool is provided with three different directions of feed (longitudinal, horizontal and rotary),
    therefore work object go through once clamping, Several surfaces in the machine tool machining
    2.Hydraulic transmission mechanism with sliding pillow reciprocating motion and hydraulic feed device for working table.
    3.The sliding pillow has the same speed in every stroke, and the movement speed of the ram and the working table can be adjusted
    continuously.
    4.Hydraulic control table have ram commutation oil for oil reversing mechanism, In addition to hydraulic and manual feed outer,
    Even there single motor drive vertical, horizontal and rotary fast moving.
    5.Use hydraulic feed the slotting machine, Is when the work is over turning back instantaneous feed, Therefore be better than
    mechanical slotting machine used drum wheel feed.
    Application:
    1. This machine be used for interpolation plane, forming surface and Keyway Etc. And can insert the inclination in the 10° Mold
    and other within the scope of etc. work matter,,
    2. Enterprise suitable for single or small batch production.

    Product main technical parameters:
    SpecificationUnitB5020B5032B5040
    Max. stroke of RAMmm220340400
    Ram maximum slotting lengthmm200320500
    Ram motion frequencytimes/min32.50.80.12520.32.50.807500
    Ram tilt angle°0-80-820.32.50.80
    Ram vertical adjustment distancemm230315315
    Cutter head bearing surface to the distance between the forearm bedmm4856000-8
    Table Diametermm50063025x40
    The distance between the lower end of the sliding frame to work tablemm320490630
    Max. longitudinal moving distance of working tablemm500630600
    Max. transverse moving distance of working tablemm500560690
    Table maximum rotation angle°360360620
    Vertical and horizontal table power feed rangemm0.08-1.210.08-1.21560
    Table rotary feed rangemm0.052-0.7830.052-0.7830.08-1.21
    Motor powerkw344
    Motor speedr/min1430960960
    Machine weightkg220030003700
    Outline dimensionmm1916*1305*19952261*1495*22452290*1525*2485

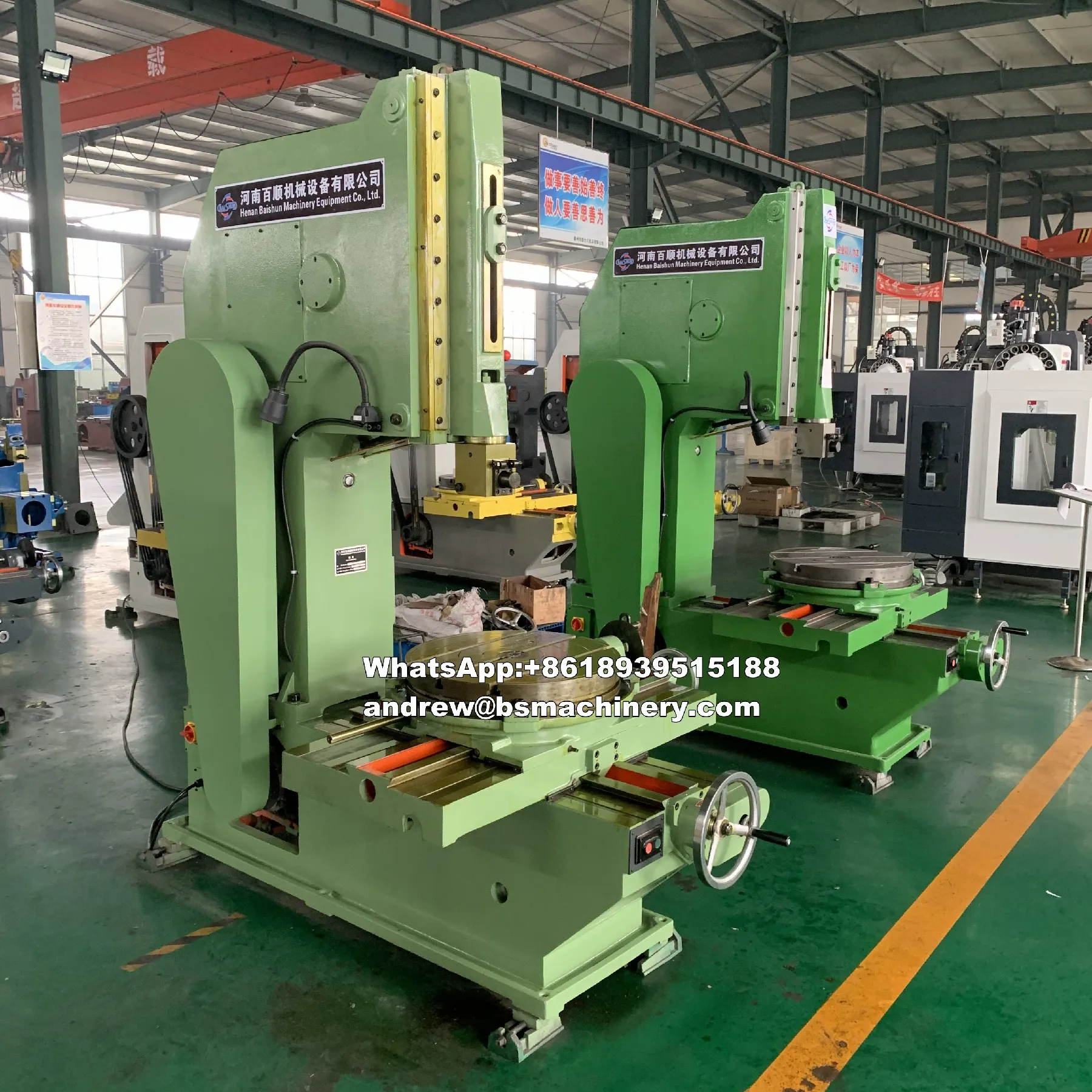

    Machine picture:

    Internal Portable Keyway Slotting Machine Vertical Shaper B5020


    Internal Portable Keyway Slotting Machine Vertical Shaper B5020Internal Portable Keyway Slotting Machine Vertical Shaper B5020Internal Portable Keyway Slotting Machine Vertical Shaper B5020Internal Portable Keyway Slotting Machine Vertical Shaper B5020Internal Portable Keyway Slotting Machine Vertical Shaper B5020

    Internal Portable Keyway Slotting Machine Vertical Shaper B5020

    Internal Portable Keyway Slotting Machine Vertical Shaper B5020

    Internal Portable Keyway Slotting Machine Vertical Shaper B5020

    Internal Portable Keyway Slotting Machine Vertical Shaper B5020
