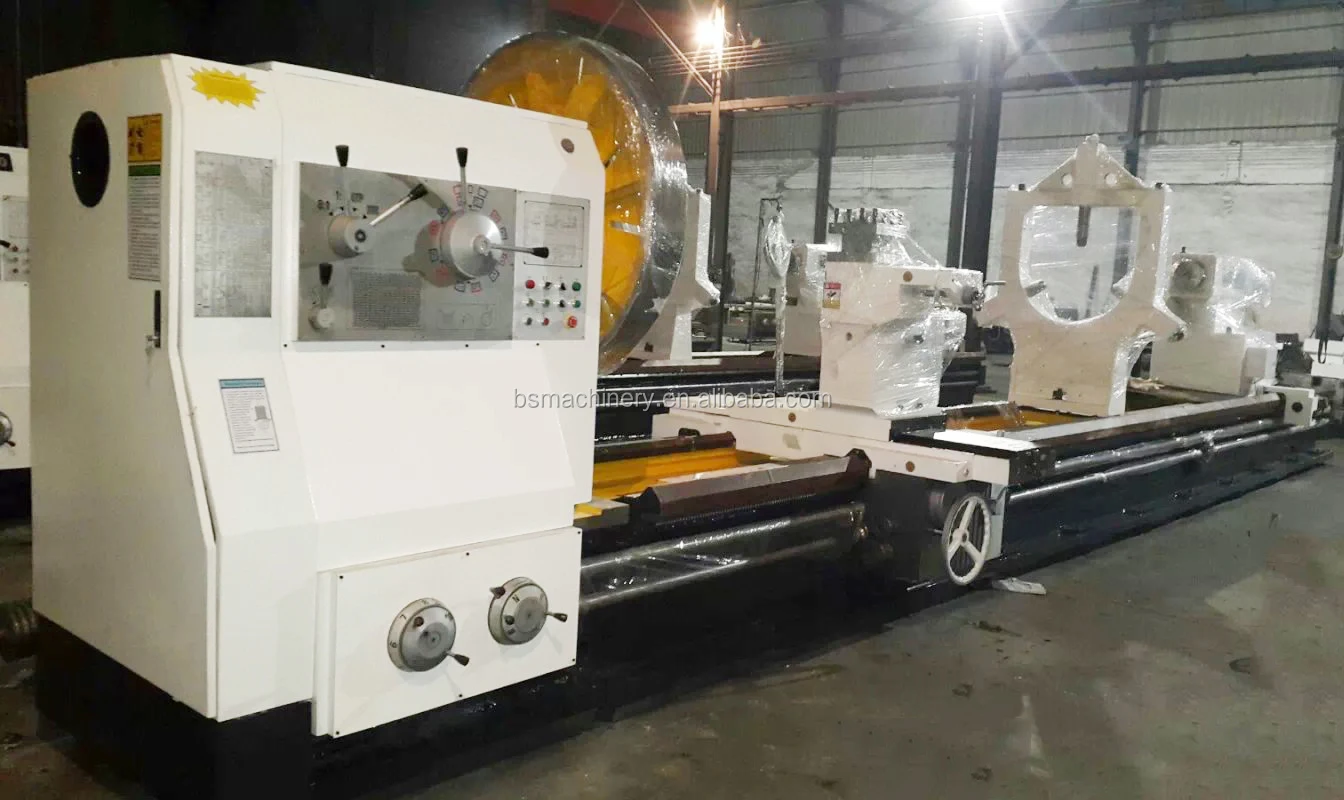

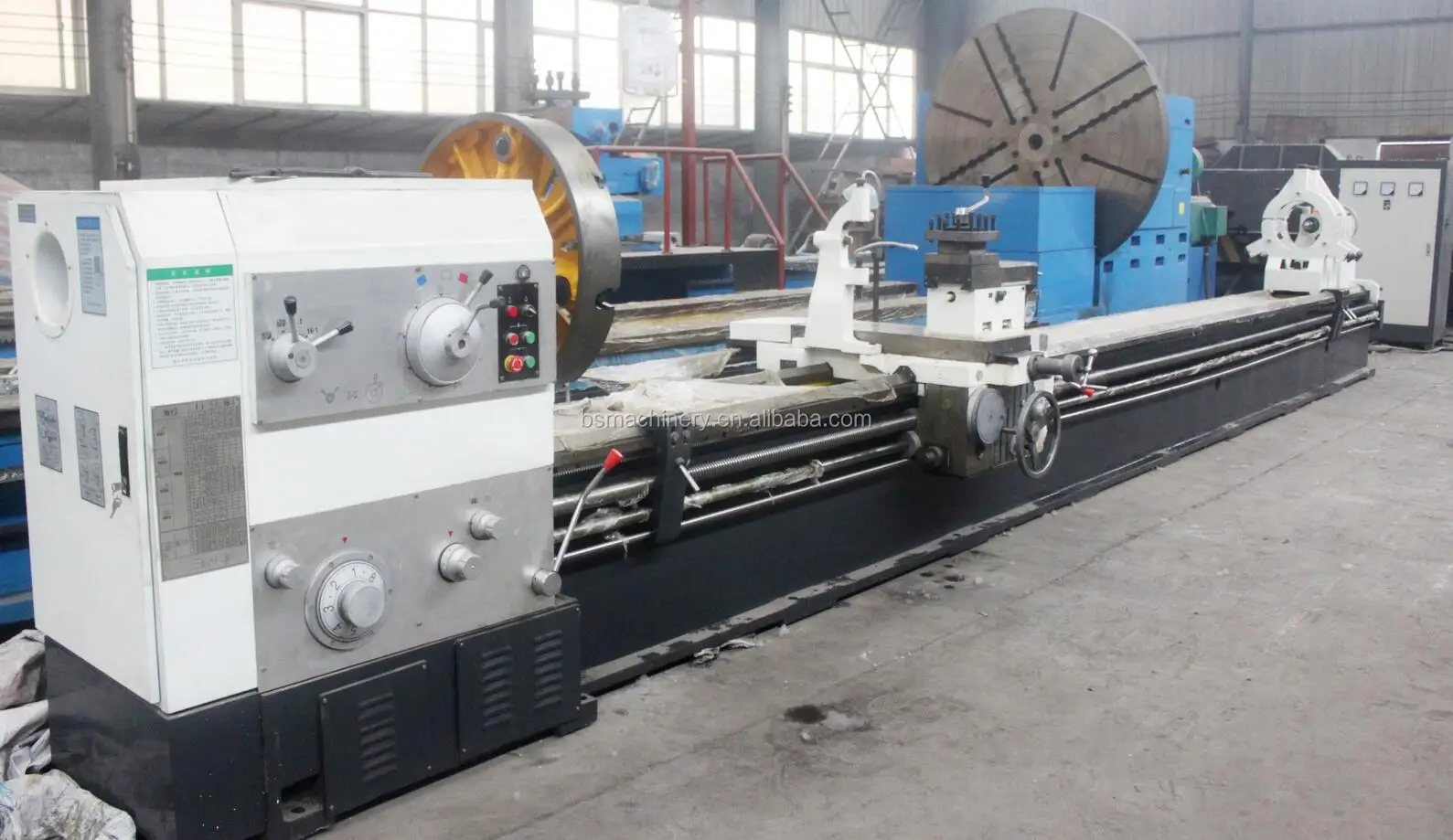

High Precision Universal Horizontal Lathe Machine Metal Lathe
1500mm
Conventional horizontal metal turning lathe machine introduction:
High Precision Universal Horizontal Lathe Machine Metal Lathe main
transmission for DC motor drive, the spindle speed is stepless
speed regulation. So in the processing of different step and the
work piece, it can obtain the reasonable cutting speed.
china cheap lathe feed system for the separation of transmission,
use of SCR infinitely variable speed, wide variable speed range,
under different processing conditions, it is able to choose the
most reasonable feed amount, Machine tool guide ways after the
processing of high frequency quenching and grinding process, it can
improve the surface hardness and precision of machine tool, also
have long service life.
1. This machine can use to process castings, steel and small-sized
and medium-sized parts of nonferrous.
2. They are also suitable for turning external cylindrical, inner
hole and end face. In addition it can do groove broaching,
drilling, boring and trepanning.
3. They can also cut metric, inch, module, diametrical pitch
threads and various internal and external thread.
4. Top slide not only can work independently to cut short conical
surface, but also can longitudinal feed to cut long conical
surface.
5. Spindle bearings use domestic famous-brand company products.
6. Headstock takes symmetrical structure to make thermal
deformation be even, avoiding the spindle center generates offsets.
7. Headstock adopts oil bath circulating lubrication to reduce
thermal deformation.
8. Frond end of the spindle adopts three-supporting structure of
two-way angular in touch with the ball bearing to improve its
accuracy and enhance its rigidity
9. Gears in headstock and guide way are processed by quenching to
ensure accurate transmission and high rigidity.
Machine Specification
Technical items
Model | CW6163
/
CW6263 | CW6180Q
/
CW6280Q | CW6180B
/
CW6280B | CW61110Q /
CW62110Q | CW61125Q
/
CW62125Q | CW61125B | CW61160B | CW61160 | CW61200 | CW61250 | |
| Swing diameter over bed | 630mm | 800mm | 800mm | 1100mm | 1250mm | 1250mm | 1600mm | 1600mm | 2000mm | 2500mm | |
| Swing diameter over carriage/cross slide | 350mm | 480mm | 480mm | 800mm | 920mm | 860mm | 1200mm | 1200mm | 1600mm | 2100mm | |
| Swing diameter over gap/saddle | CW6163-
No gap | CW6180Q-
No gap | CW6180B-
No gap | CW61110Q--
No gap | CW61125Q--No gap |
No gap |
CW6263-
800mm | CW6280Q-
1000mm | CW6280B-
1000mm | CW62110Q--
1300mm | CW62125Q--1500mm |
| Max. Length of workpiece | 1500mm; 2000mm; 3000mm;4000mm; 5000mm; 6000mm; 8000mm; 10000mm;
12000mm; 14000mm; 16000mm; 18000mm; 20000mm |
| Max. Weight of workpiece | 2 tons | 2 tons | 2.5 tons | 2.5 tons | 2.5 tons | 6 tons | 6 tons | 16 tons | 16 tons | 16 tons | |
| Spindle hole diameter | 105mm | 105mm | 105mm | 105mm | 105mm | 130mm | 130mm | 130mm | 130mm | 130mm | |
| Guide rail width | 550mm | 550mm | 600mm | 600mm | 600mm | 755mm | 755mm | 1100mm | 1100mm | 1100mm | |
| Main motor power | 11 kw | 11 kw | 11 kw | 11 kw | 11 kw | 22 kw | 22 kw | 22 kw | 22 kw | 22 kw | |
CW6163 / CW6263 horizontal metal turning lathe machine:
Main technical data:
Max.swing diameter over bed: 630mm
Max.swing diameter over gap: 800mm
Max.swing diameter over carriage: 350mm
Max. processing workpiece length: according your request
Max.loading capacity:2ton (bed width: 550mm)
CW6180Q / CW6280Q horizontal metal turning lathe machine:
Main technical data:
Max.swing diameter over bed: 800mm
Max.swing diameter over gap: 1000mm
Max.swing diameter over carriage: 480mm
Max. processing workpiece length: according your request
Max.loading capacity:2ton (bed width: 550mm)
CW6180B / CW6280B horizontal metal turning lathe machine:
Main technical data:
Max.swing diameter over bed: 800mm
Max.swing diameter over gap: 1000mm
Max.swing diameter over carriage: 480mm
Max. processing workpiece length: according your request
Max.loading capacity:2.5ton (bed width: 600mm)
CW61125Q / CW62125Q horizontal metal turning lathe machine:
Main technical data:
Max.swing diameter over bed: 1250mm
Max.swing diameter over gap: 1450mm
Max.swing diameter over carriage: 920mm
Max. processing workpiece length: according your request
Max.loading capacity:2.5ton (bed width: 600mm)
Noted: if the bed width is 755mm, the max.loading capacity is 6ton;
CW61160B horizontal metal turning lathe machine:
Main technical data:
Max.swing diameter over bed: 1600mm
Max.swing diameter over carriage: 1200mm
Max. processing workpiece length: according your request
Max.loading capacity:6ton (bed width: 755mm)
Noted: if the bed width is 1100mm, the max.loading capacity is 16ton;
CW61200 horizontal metal turning lathe machine:
Main technical data:
Max.swing diameter over bed: 2000mm
Max.swing diameter over carriage: 1600mm
Max. processing workpiece length: according your request
Max.loading capacity:16ton (bed width: 1100mm)
C61200 heavy duty horizontal metal turning lathe machine:
Main technical data:
Max.swing diameter over bed: 2000mm
Max.swing diameter over carriage: 1600mm
Max. processing workpiece length: according your request
Max.loading capacity:32ton (bed width: 1600mm)
