Horizontal Turning Lathe CNC Turning Milling Center With Live Tooling Flat Bed

Ask Lasest Price
Brand Name :	Baishun
Model Number :	CAK6180
Supply Ability :	50 Set/Sets per Month
Price :	Negotiation
Certification :	ISO
Payment Terms :	T/T, L/C, Western Union
Delivery Time :	45 work days

Add to Cart

Product Details
Company Profile

Horizontal Turning Lathe CNC Turning Milling Center With Live Tooling Flat Bed

Horizontal CNC Lathe Turning And Milling Center With Live Tooling Flat Bed Cnc Lathe Machine

A: Main Features:
1.Spindle with smooth surface and high speed
2.Japan NSK bearing
3.Body and guide of lathe has good rigidity and stability;
4.the guide is treated by super audio quenching with high hardness,
5.The carriage adopts plastic paste processing. High precision with long life.
6.Spindle brake way by electric brake
7.Feed of X.Z axis are driven by all screw with servo-motor
8.Electronic hand wheel equipped easy operation.
9.Can be free to choose CNC system
10.Three gears speed change and stepless speed change with lower noise and high standard machining accuracy;
11.Three kinds of spindle bore can be choose(52mm/82mm/105mm)while the diameter of chuck is φ250mm and 325mm

Specifications	CAK6140	CAK6150	CAK6161	CAK6166	CAK6180
Max Swing over bed(mm)	400	500	610	660	800
Max workpiece length(mm)	750/1000/1500/2000/3000mm
Spindle taper	MT 6
Chuck size	C6(D8(B, C stype)]
Spindle bore dia.	Φ52mm,( Φ80mm ( B) ]. [ Φ105mm(C)]
Ranged spindle speeds	3 steps (Auto.change gear) Independent spindle:100~1600r/min ; 21—1500r/min( I 162-1500 II66-500 121-150)
Tailstock sleeve travel	150mm
Tailstock sleeve taper	MT 5
Positioning accuracy	±0.015mm
Repositioning accuracy	±0.006mm
X/Z rapid traverse	4/6 m /min
Spinde Motor	7.5 KW			11KW
Overall dimension for 750	2550x1550x1700		2550x1550x1900
Overall dimension for 1000	2750x1550x1700		2750x1550x1900
Overall dimension for 1500	3250x1550x1700		3250x1560x1900
Overall dimension for 2000	3700x1550x1700		3700x1560x1900
Overall dimension for 3000	4710x1550x1700		4710x1560x1900
Length	G.W	G.W	G.W	G.W	G.W
Overall dimension for 750	2800	2900	2850	2900	3000
Overall dimension for 1000	2900	3000	3000	3060	3150
Overall dimension for 1500	3150	3200	3200	3250	3350
Overall dimension for 2000	3350	3400	3400	3450	3550
Overall dimension for 3000	4100	4200	4250	4300	4400

Standard Configuration :
1.System: GSK
2.3-jaw manual chuck
3.4-station electric turret
4.Frequency spindle motor
5.Stepless speed changer
6.Manual tailstock
7.Lighting system
8.Cooling system
9.Automatic lubrication system
Optional Configuration:

System	KND ,Siemens ,Fanuc etc
Spindle motor	Servo spindle motor
Tool post (turret)	Electric 6-station / 8-station /Gang type 4-station
Chuck	Spring chuck ,Hydraulic chuck ,pneumatic chuck
Tailstock	Hydraulic tailstock ,pneumatic tailstock
Feeder	Automatic Bar feeder
Conveyor	Automatic chip conveyor
Speed change	Stepless speed ,Three-gear speed change

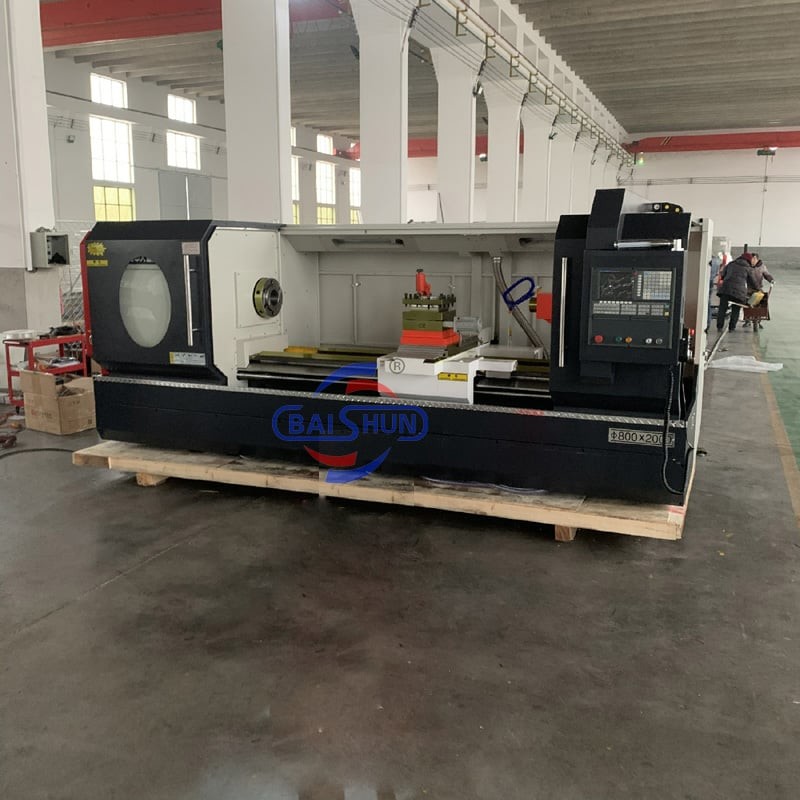

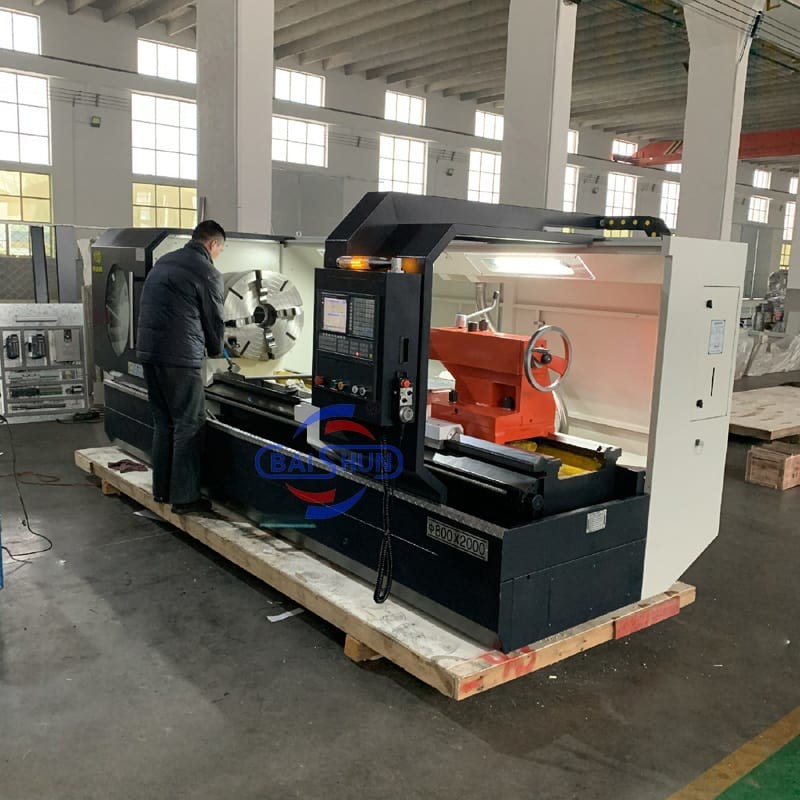

Machine picture:

Horizontal Turning Lathe CNC Turning Milling Center With Live Tooling Flat Bed
