Product Description
CNC Milling Machines VMC1160 Aluminum Profile CNC Vertical
Machining Center
A vertical milling machine, also known as a VMC, is a specialized
machine commonly used in industries like automotive, aerospace, and
electronics. It is specifically designed for producing intricate
parts with complex shapes, using a computer-controlled cutting tool
that rotates and moves in multiple directions.
The VMC is a flexible and accurate manufacturing solution that
allows the production of high-quality components in different
industries. It plays a vital role in modern manufacturing
processes, empowering skilled operators to craft intricate elements
from various materials.
Machine parametes:
Model | VMC550 | VMC650 | VMC850 | VMC1050 |
Table(mm) | 800*350 | 900*400 | 1050*500 | 1050*560 |
Max.table load(kg) | 300 | 450 | 600 | 600 |
X/Y/Z axis travel(mm) | 550*350*500 | 650*400*500 | 800*500*600 | 1000*500*600 |
Diatance between spindle center and column guide surface(mm) | 419 | 476 | 560 | 560 |
Diatance between spindle face and worktable face(mm) | 100-600 | 100-600 | 140-740 | 140-740 |
X/Y/Z Max.feed speed(mm/min) | 10000 | 10000 | 10000 | 10000 |
X/Y/Z Max.rapid traverse | 20/20/15 | 24/24/20 | 20/20/15 | 20/20/15 |
Max.speed of spindle(r/min) | 8000 | 8000 | 8000 | 8000 |
The spindle taper hole(type) | BT40 | BT40 | BT40 | BT40 |
Spindle motor(kw) | 3.7/5.5 | 5.5/7.5 | 7.5/11 | 7.5/11 |
X/Y/Z axis servo motor(kw) | 1.0/1.0/1.5 | 1.0/1.0/1.5 | 1.0/1.0/2.0 | 1.0/1.0/2.0 |
X/Y/Z motor connection | Direct connection |
X/Y/Z Guide way type | Linear guide | Two linear one hard guide | Linear guide | Linear guide |
Worbench T slot(mm) | 3-18*105 | 3-18*125 | 5-18*90 | 5-18*90 |
Repeat accuracy(mm) | ±0.004 | ±0.004 | ±0.004 | ±0.004 |
Max.tool wight(kg) | 7 | 7 | 8 | 8 |
Max.tool length(mm) | 250/300 | 250/300 | 250/300 | 250/300 |
Electric capacity(kVA) | 10 | 10 | 11 | 11 |
Weight (kg) | 3000 | 4500 | 5700 | 6000 |
Dimension(L*W*Hmm) | 2100*1950*2200 | 2300*2200*2400 | 2700*2400*2700 | 2920*2400*2700 |

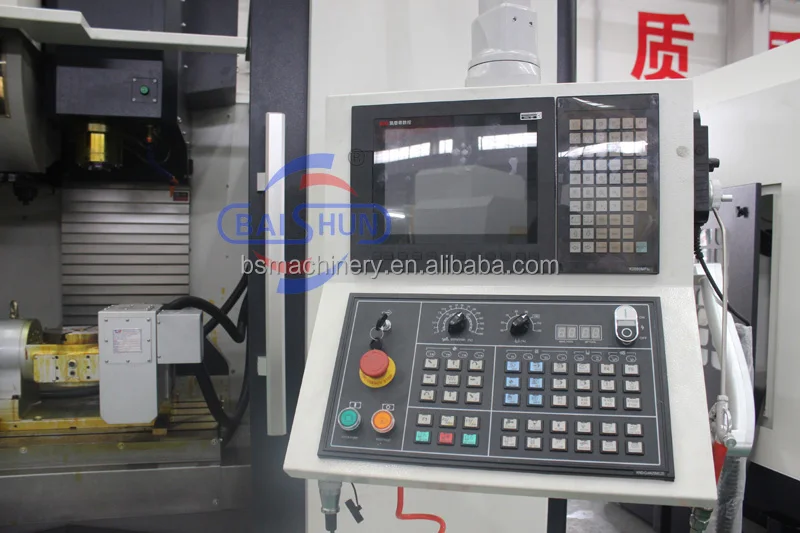

we can equip all brand CNC controller: FANUC Oi-mf; Siemens808D;
Siemens 828; Mitsubishi M80;
also Chinese CNC brand like: HNC808; KND2000mf; GSK980T;etc.
Chip conveyor are optional:

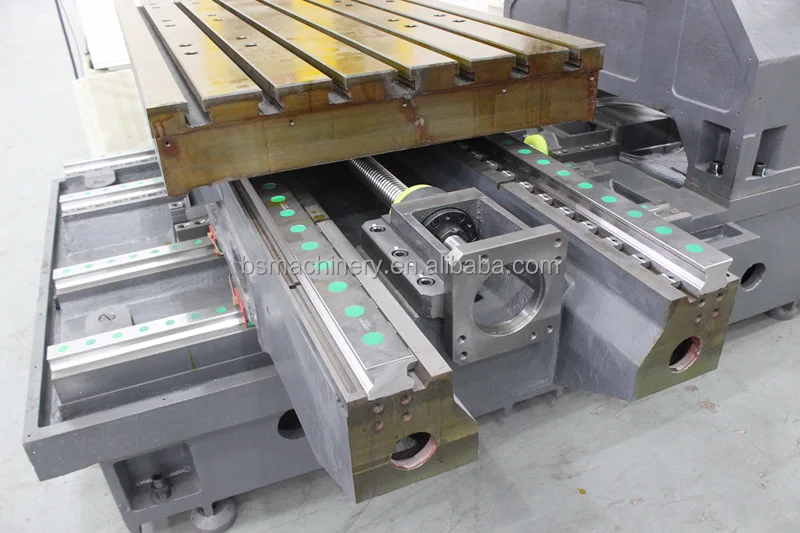

HIWIN from Taiwan China brand are adopted.
Company Information
Henan Baishun Machinery Equipment Co.,Ltd is a professional
manufacturer, which especially work for Slotting machine,Vertical lathe machine, CNC Vertical lathe
machine, CNC Horizontal lathe machine, Roll lathe machine, Gear
hobbing machine, Pole erection machine, Shredder machine,etc.
We attach great importance to international technical exchanges and
cooperation, has introduced advanced technology and craft from
United States, Germany, Australia and other countries, establishes
the international advanced production lines and first-class modern
testing base. Welcome all friends visiting and communicating and cooperating!!!
Our Services
1. 24 Hours after sales service by E-mail or Phone.
2. 100% response rate.
3. Engineers available to service overseas.
4. OEM service is available
5. Warranty: 12 months, beyond the warranty period, all spare parts
offered to you with factory price.
