Single Spindle Manual Metal Working Digital Control Vertical Lathe Machine

Description:

The digital control vertical lathe, also known as a vertical turning center, is a machine tool used for turning and cutting metal components with high precision and efficiency.

Compare with conventional lathes, which are typically horizontal and require the workpiece to be mounted on a rotating chuck, a manual vertical lathe has a vertical spindle that holds and rotates the workpiece. The cutting tool is mounted on a tool turret that moves in multiple axes, allowing for precise and complex machining operations.

Single pindle manual vertical lathes are widely used in the manufacturing industry for producing large and heavy components, such as gears, turbines, and aerospace parts. They are particularly useful for turning components with a high aspect ratio because the vertical orientation minimizes the effects of gravity on the workpiece, reducing the risk of deflection and distortion.

Additionally, the vertical lathes are highly automated and can be programmed to perform a wide range of machining operations, such as turning, drilling, boring, threading, and milling, with minimal human intervention.

Overall, the single spindle manual type metal working digital control vertical lathes are a versatile and efficient machining tool that offer high precision and automation capabilities, making them an essential component of modern manufacturing processes.

1.This versatile machine is suitable for mechanical processing across various industries.

2. The main transmission is driven by an AC motor, with a main drive speed that can be changed in 16 steps through solenoid valve control.

3. All gears in the gearbox undergo high-frequency quenching for enhanced durability.

4. The worktable features a rolling guideway design, allowing for large loading capacity and high turning precision.

5. The vertical tool-post is equipped with a five-station tool-post and utilizes high-precision rat-gear disk positioning.

6. The tool-posts employ hydraulic balancing, with horizontal and vertical feeds using sliding screw drives.

7. The hydraulic system is equipped with German traffic transmission devices to ensure stable oil flow for the worktable lubrication.

8. The machine is controlled by a PLC system for high reliability, with electrical wiring tailored to the specific process requirements.

9. The machine boasts an attractive design, ensuring user comfort and convenient operation and maintenance.

10. Customization options include a digital display(DRO) device square ram upon customer request, providing additional flexibility to meet specific needs.

11. It mainly can be used for rough and finish machining of inside and outside cylinders, cone surfaces, end faces, grooving, cutting, and internal hole boring.

Specification:

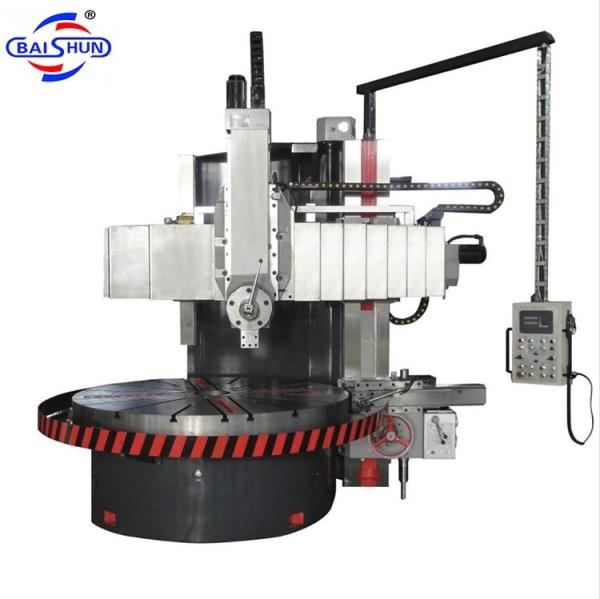

Machine picture:

Henan Baishun Machinery Equipment Co., Ltd. is a professional manufacturer of machinery equipments with a long history. We can manufacturer manual kind of horizontal lathe machine; CNC lathe machine; vertical lathe machine; CNC roll turning lathe machine; Manual or CNC kind face lathe machine ,CNC Vertical Machining Center,etc.

The factory was established since 2007, located in Zhengzhou, Henan province, China, covers an construction area around 80,000 square meters, there are about 200 employees and factory total asset more than 50 million dollars. The factory has been certified by ISO9001 and CE, and was awarded as Top Ten Enterprise of Management by Machine Tool Association of China.

Service & quality promise:
We always keep our enterprise mission---“Quality changes the world” in mind, we start our work from each trivial matter, and do our best to complete each detail well, address customer worries for the future, so that our customers could have our professional and hi-quality technical support and considerate service.
